【学习】分布式任务调度XXL-JOB

定时任务使用场景

1、时间驱动
房贷短信
营销类短信
对账单、日结、月结
...
2、数据驱动
数据交换，数据同步
系统解耦，批量处理
...

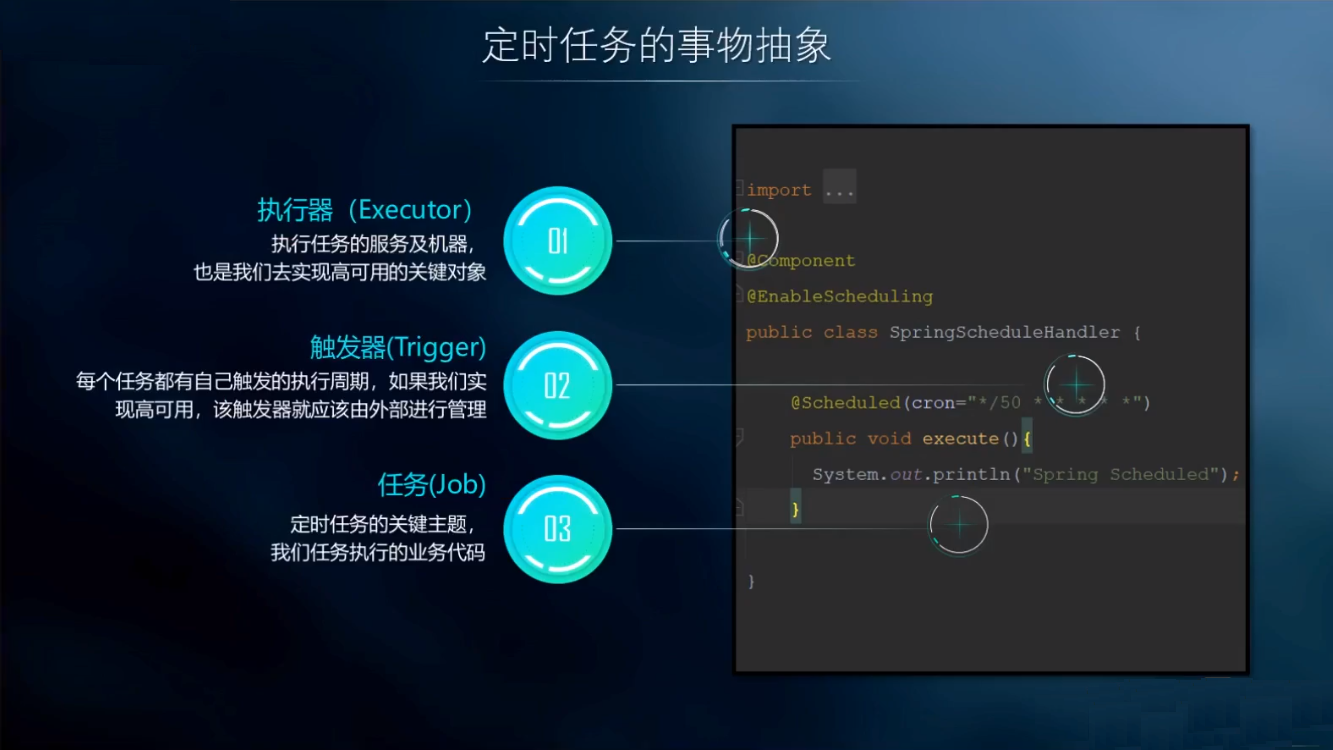

定时任务的基本概念

1、执行器 Executor
2、任务 JOB
3、触发器 Trigger

原生定时任务框架先天缺陷

1、不支持分片任务
处理有序数据时，多机器分片执行任务处理不同数据

2、不支持生命周期统一管理
不重启服务情况下关闭、启动任务。

3、不支持集群
存在任务重复执行的问题

4、不支持失败重试
出现异常后任务终结，不能根据执行状态控制任务重新执行

5、不支持动态调整
不重启服务的情况下修改任务参数

6、无报警机制
任务失败之后没有报警机制

7、任务数据统计难以统计
任务数据量大时，对于任务执行情况无法高效的统计执行情况

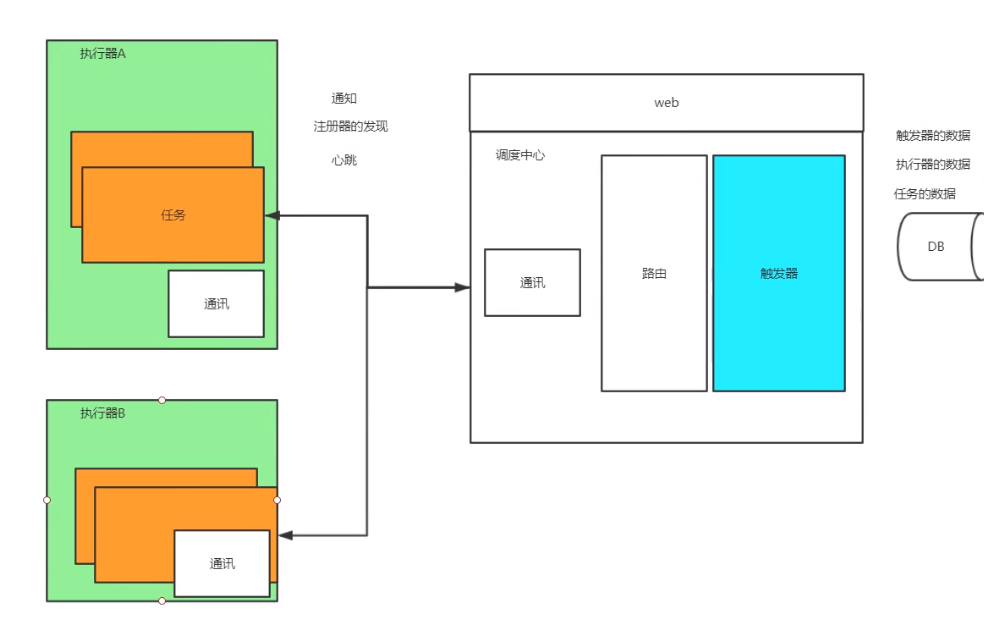

XXL-JOB架构

调度中心设计

任务检测

以秒查询当前需要执行的任务，并计算出下一次的执行时间，并更新数据库

负载均衡

根据执行器地址列表和配置的路由测试计算出需要通知的执行器

通讯

使用自定义的RPC协议，或者http协议。Xxl-job通过netty封装了Servlet容器

健康检查

监控执行器是否在线，离线的机器需要踢出负载列表

执行器设计

对外接口

提供一系列对外接口给调度中心调用，接收任务执行通知

任务管理

在执行器初始化的时候，实例化有当前执行器中声明的任务实例，并进行管理

调度实现

在接收到任务执行通知的时候，调用对应实例执行业务方法。阻塞策略的控制。超时机制的实现

健康检查

定时上报心跳信息，实现调度中心的健康检查

XXL-JOB安装使用说明

1、源码下载

许雪里社区 http://www.xuxueli.com/page/projects.html
XXL-JOB github 地址 https://github.com/xuxueli/xxl-job

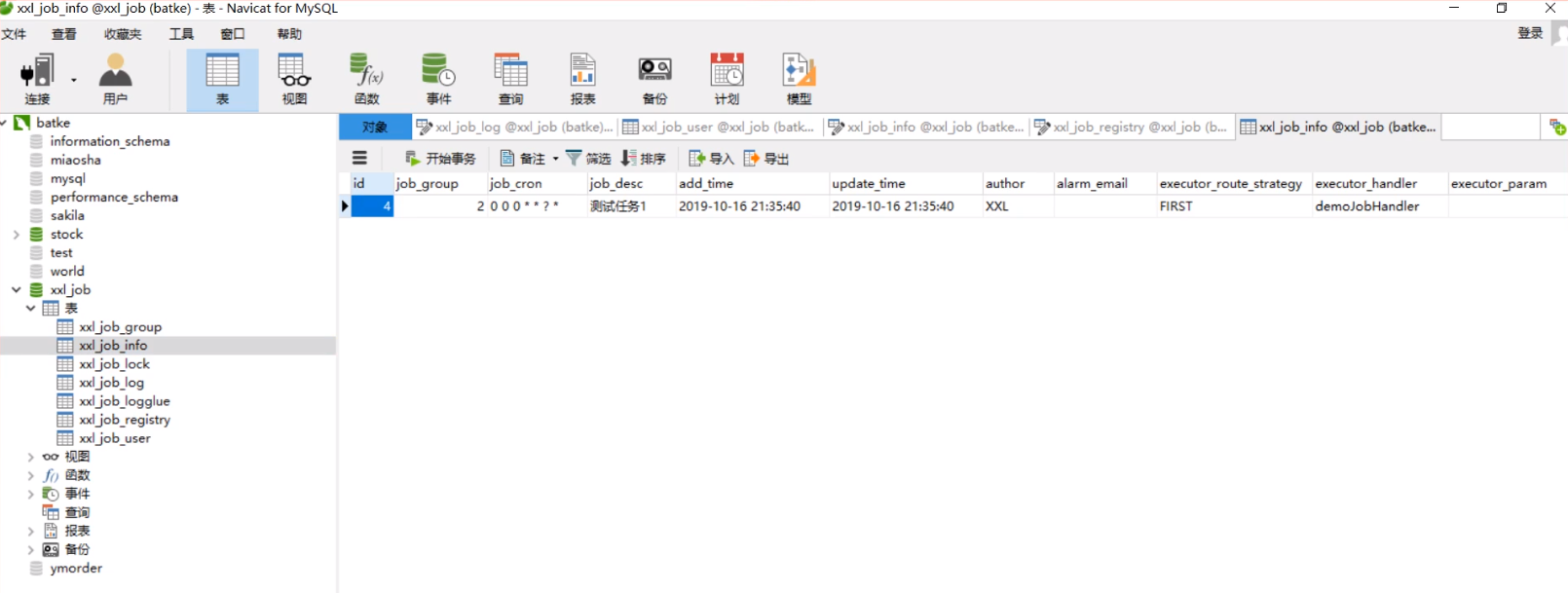

2、初始化admin数据库

表名	表描述
xxl_job_group	执行器分组
xxl_job_info	任务信息
xxl_job_lock	任务通知分布式锁
xxl_job_log	任务执行日志
xxl_job_logglue	glue模式任务日志
xxl_job_registry	执行器注册信息
xxl_user	admin用户表

3、修改admin配置文件

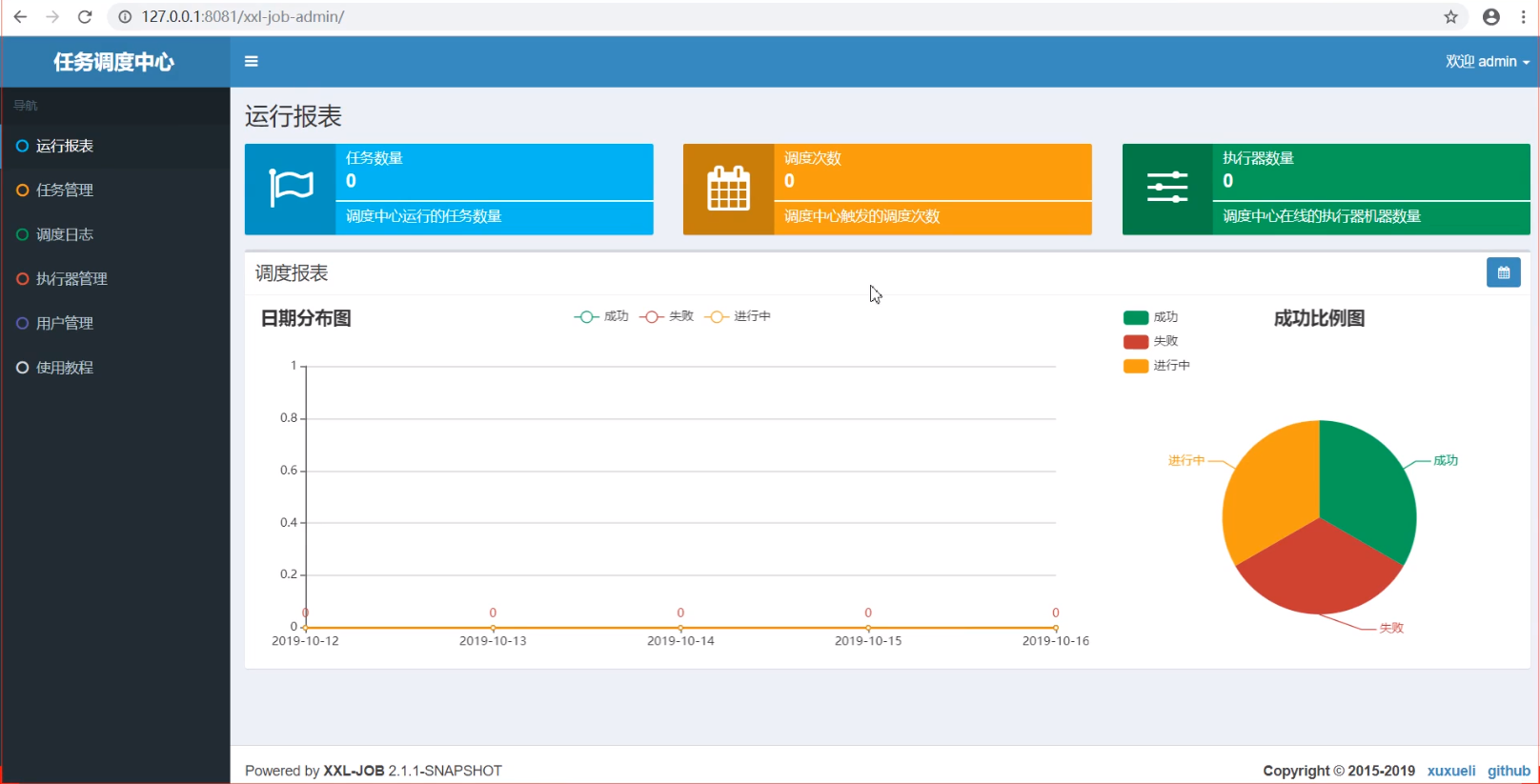

4、访问admin首页，执行器列表、任务列表

http://127.0.0.1:8081/xxl-job-admin

5、执行器依赖core包，修改配置文件

properties

xxl.job.admin.addresses=http://127.0.0.1:8081/xxl-job-admin

### xxl-job executor address
xxl.job.executor.appname=xxl-job-executor-sample
xxl.job.executor.ip=
xxl.job.executor.port=9999

### xxl-job, access token
xxl.job.accessToken=

### xxl-job log path /data/applogs/xxl-job/jobhandler
xxl.job.executor.logpath=D:\\xxldata\\applogs\\xxl-job\\jobhandler
### xxl-job log retention days
xxl.job.executor.logretentiondays=-1

6、编写任务handler

java

@Component
public class SampleXxlJob {
    private static Logger logger = LoggerFactory.getLogger(SampleXxlJob.class);


    /**
     * 1、简单任务示例（Bean模式）
     */
    @XxlJob("demoJobHandler")
    public void demoJobHandler() throws Exception {
        XxlJobHelper.log("XXL-JOB, Hello World.");

        for (int i = 0; i < 5; i++) {
            XxlJobHelper.log("beat at:" + i);
            TimeUnit.SECONDS.sleep(2);
        }
        // default success
    }
}

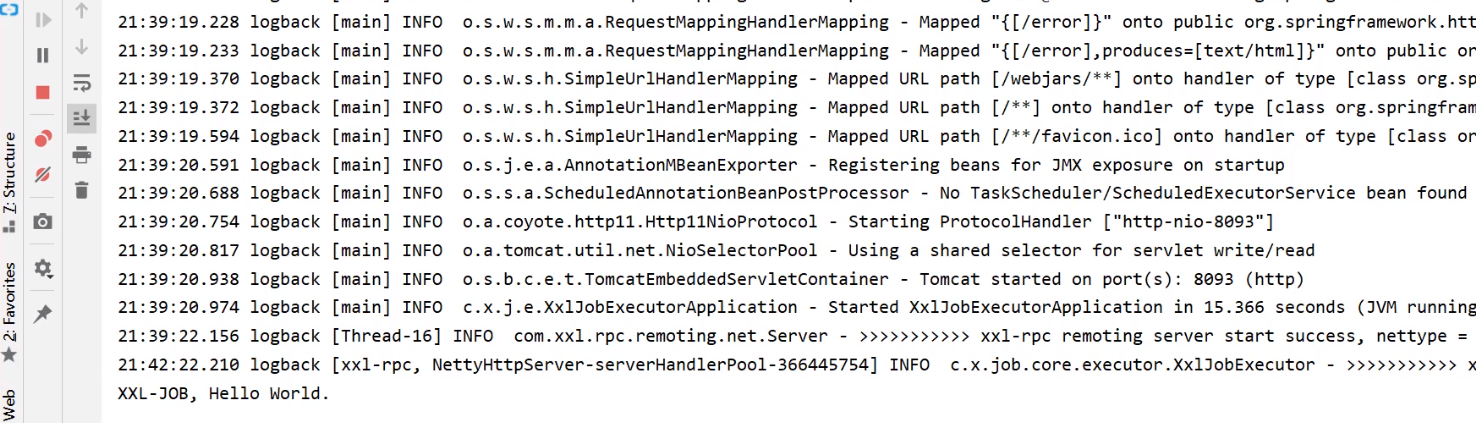

7、启动执行器

自动注册

手动注册

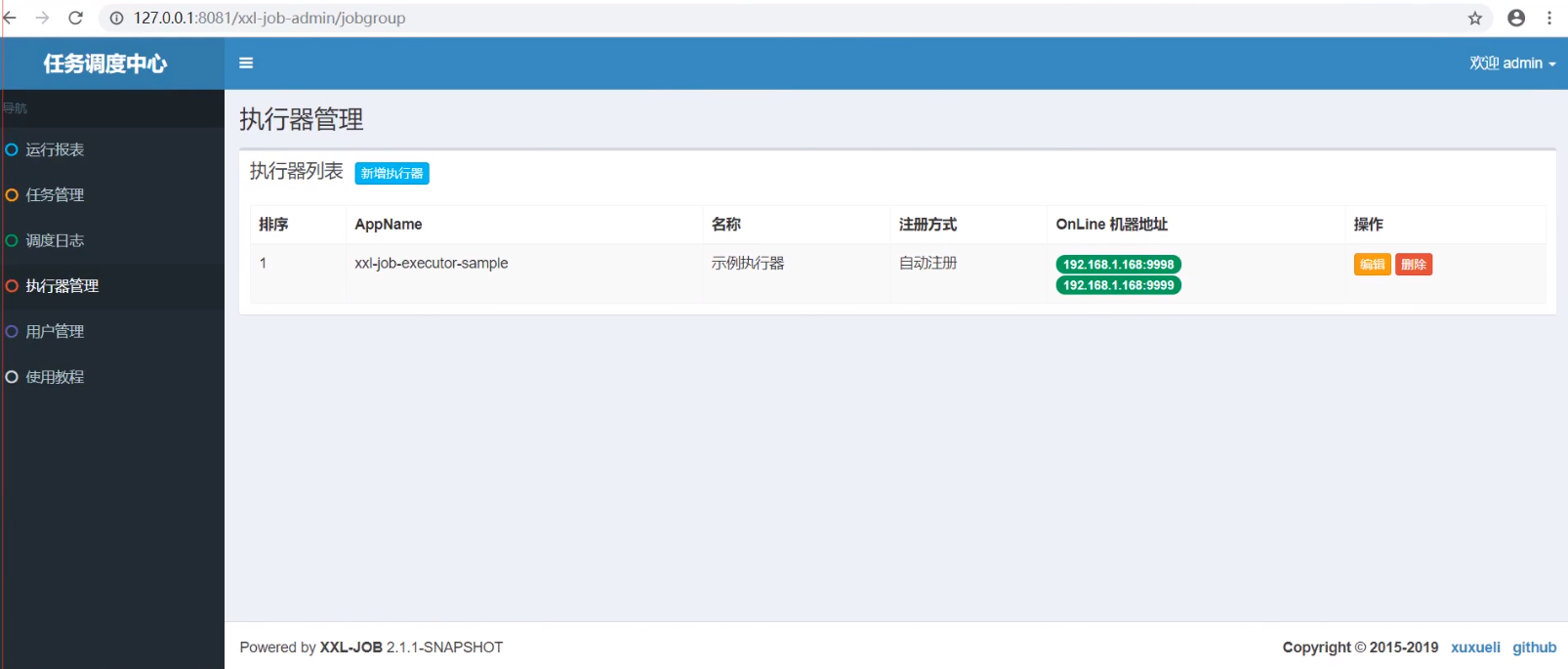

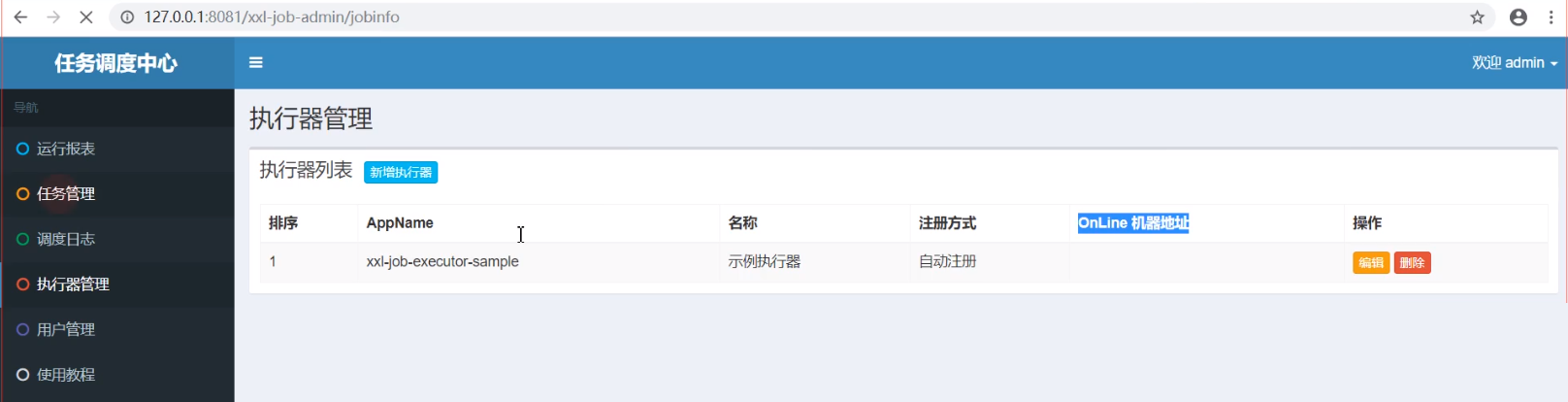

8、admin查看执行器列表

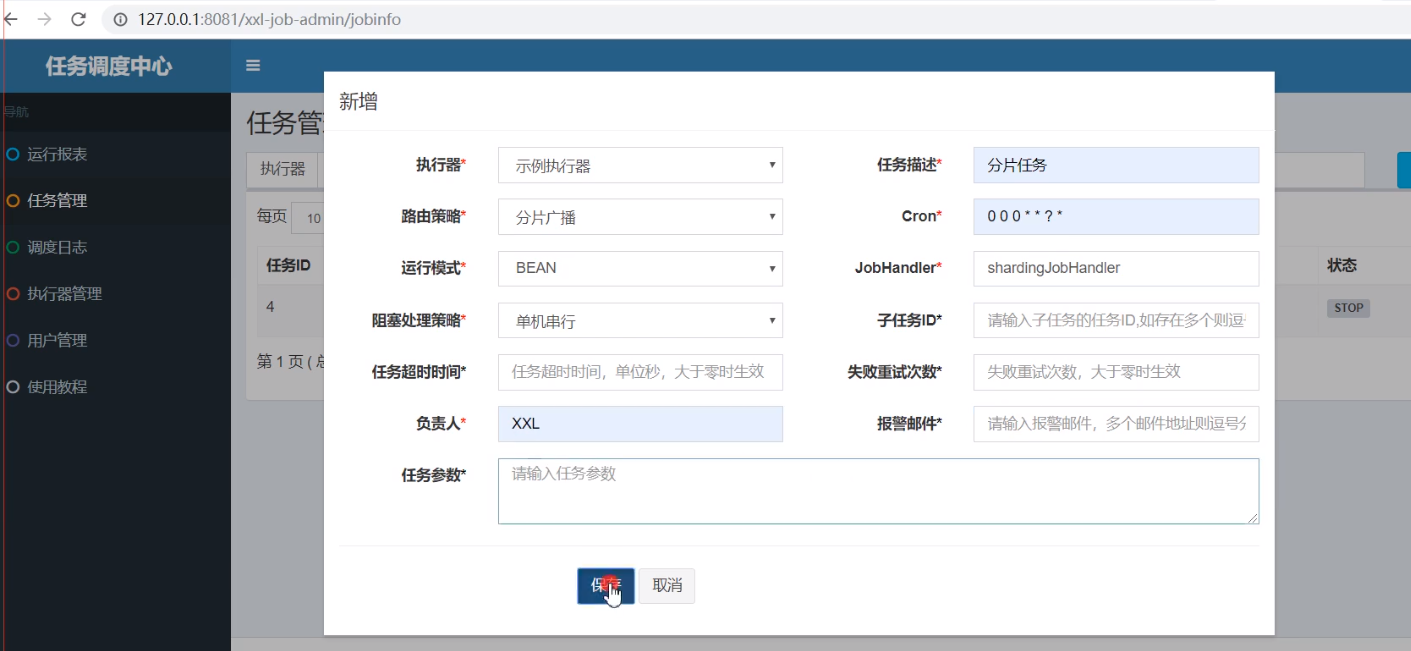

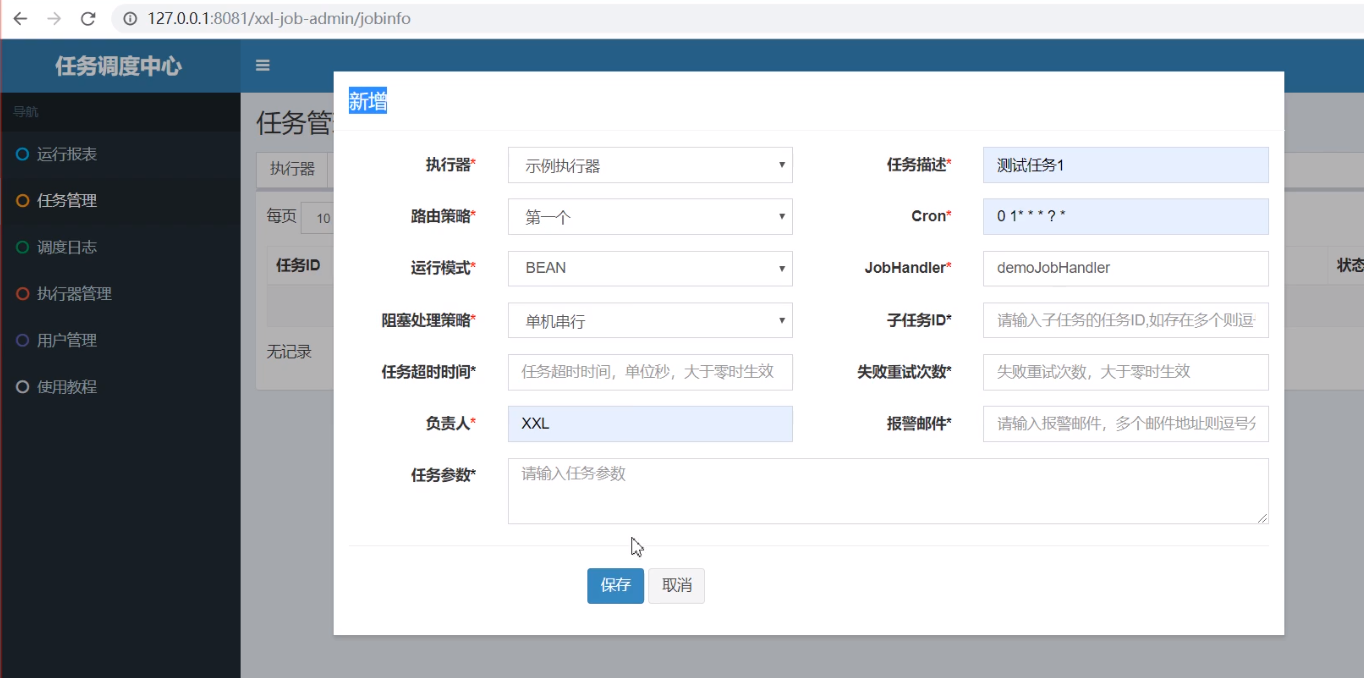

9、配置任务

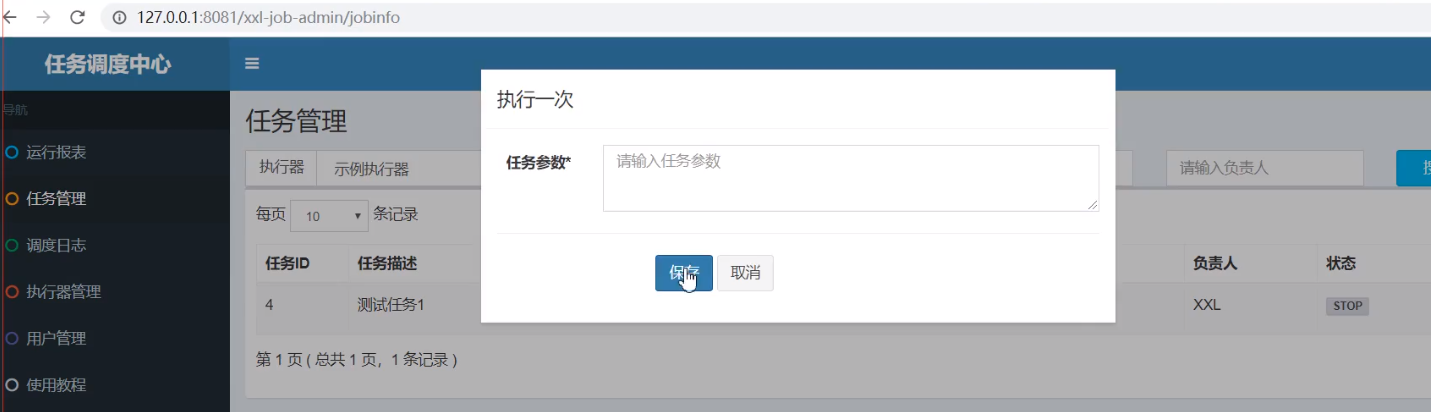

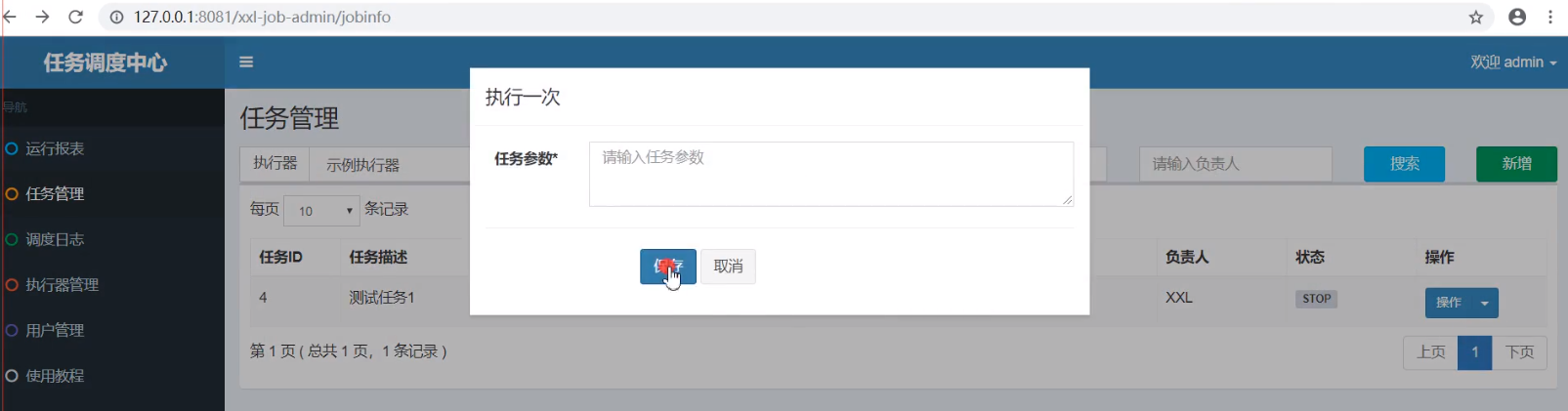

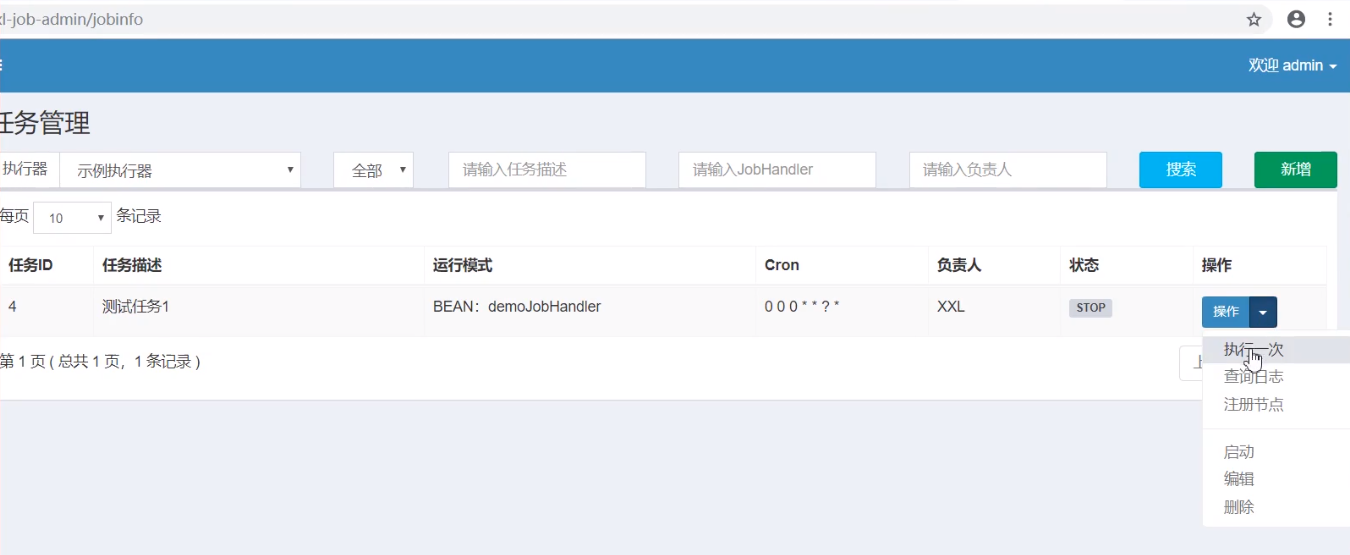

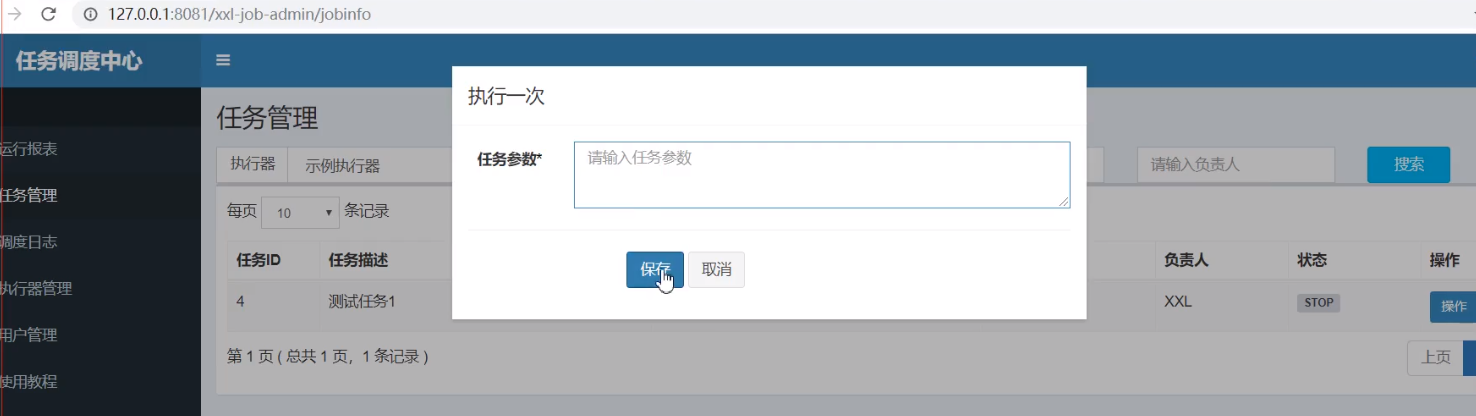

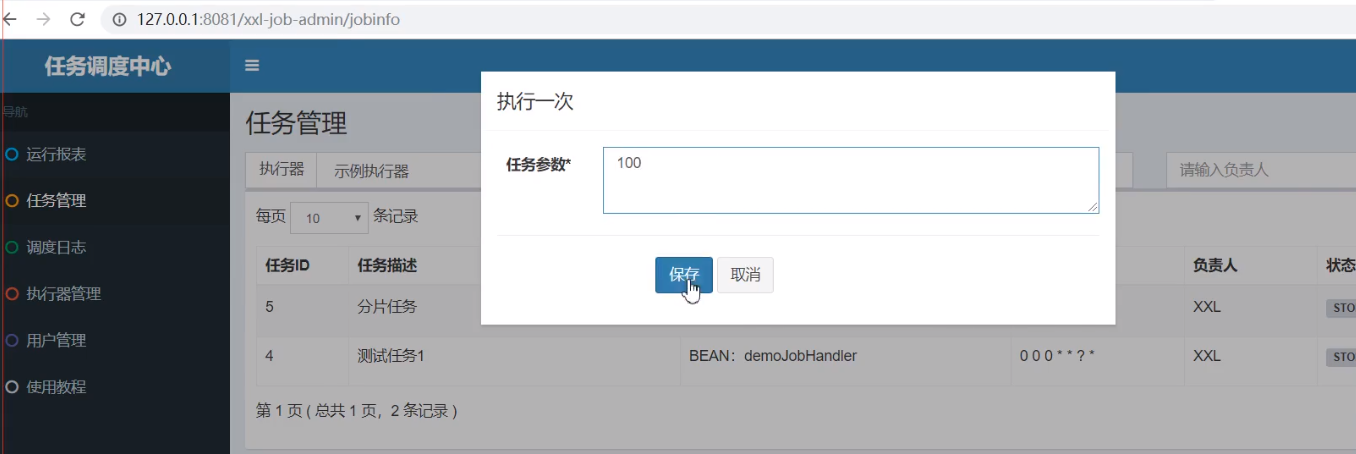

10、执行一次任务

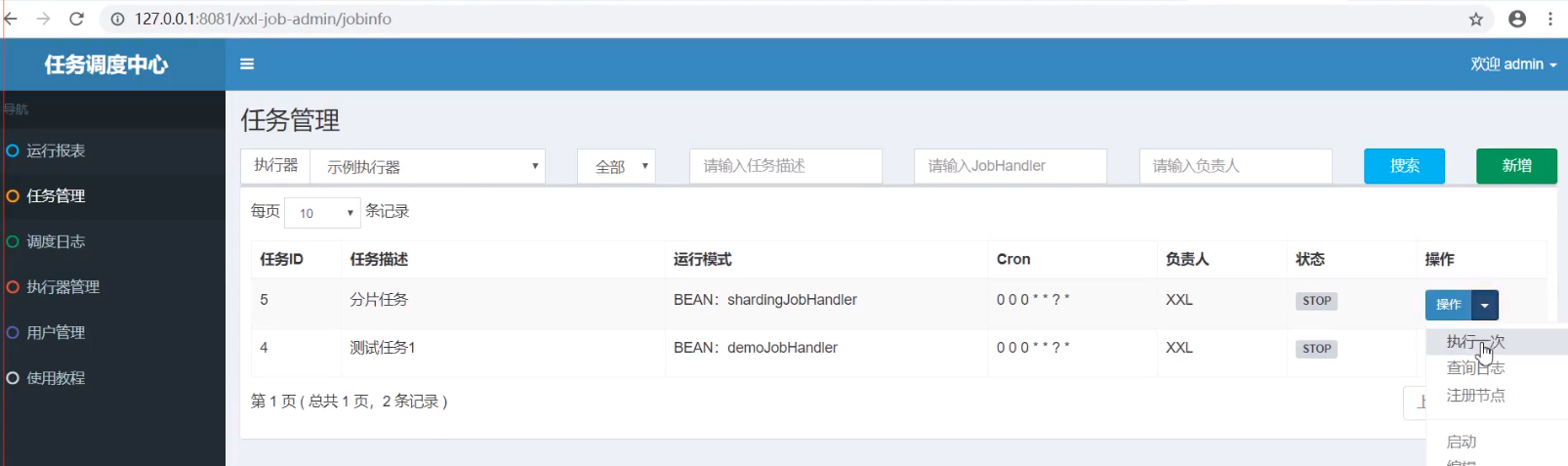

11、启动任务

12、admin集群

   集群任务通知原子性

13、多机器

properties

xxl.job.admin.addresses=http://127.0.0.1:8081/xxl-job-admin

### xxl-job executor address
xxl.job.executor.appname=xxl-job-executor-sample
xxl.job.executor.ip=
xxl.job.executor.port=9998

### xxl-job, access token
xxl.job.accessToken=

### xxl-job log path /data/applogs/xxl-job/jobhandler
xxl.job.executor.logpath=D:\\xxldata\\applogs\\xxl-job\\jobhandler
### xxl-job log retention days
xxl.job.executor.logretentiondays=-1

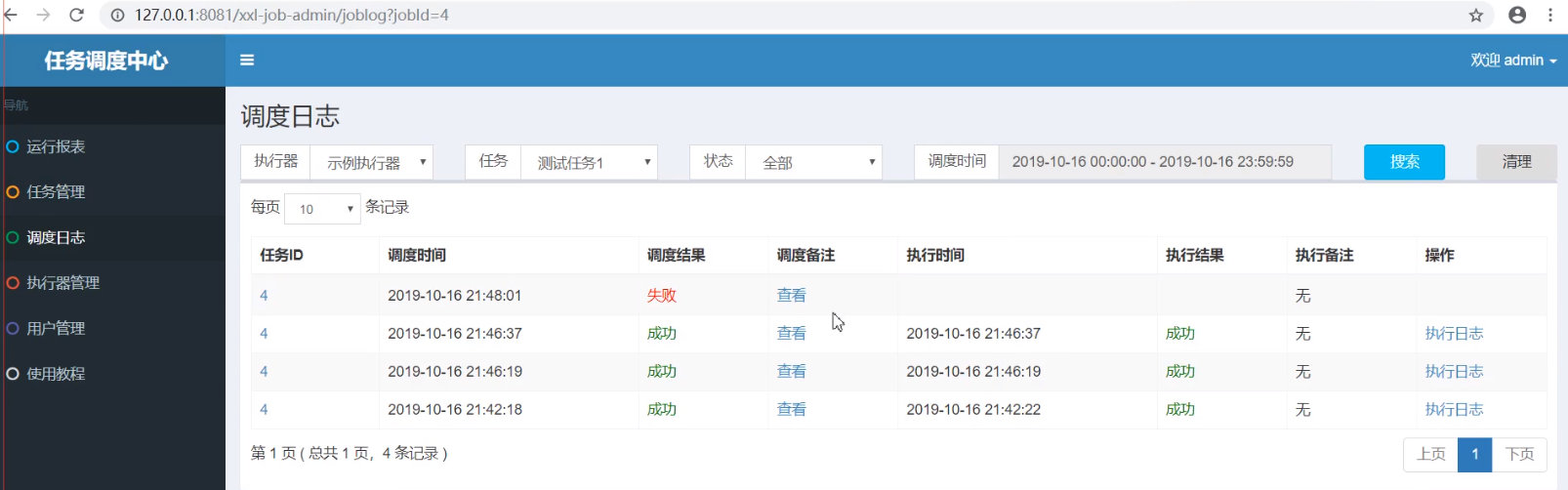

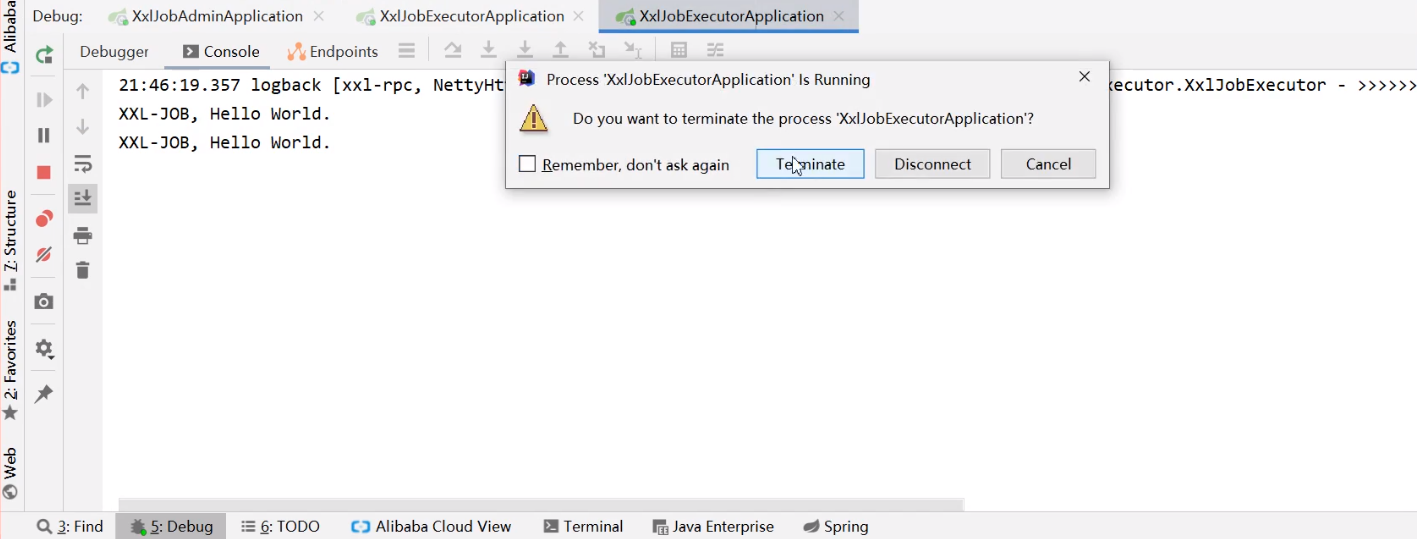

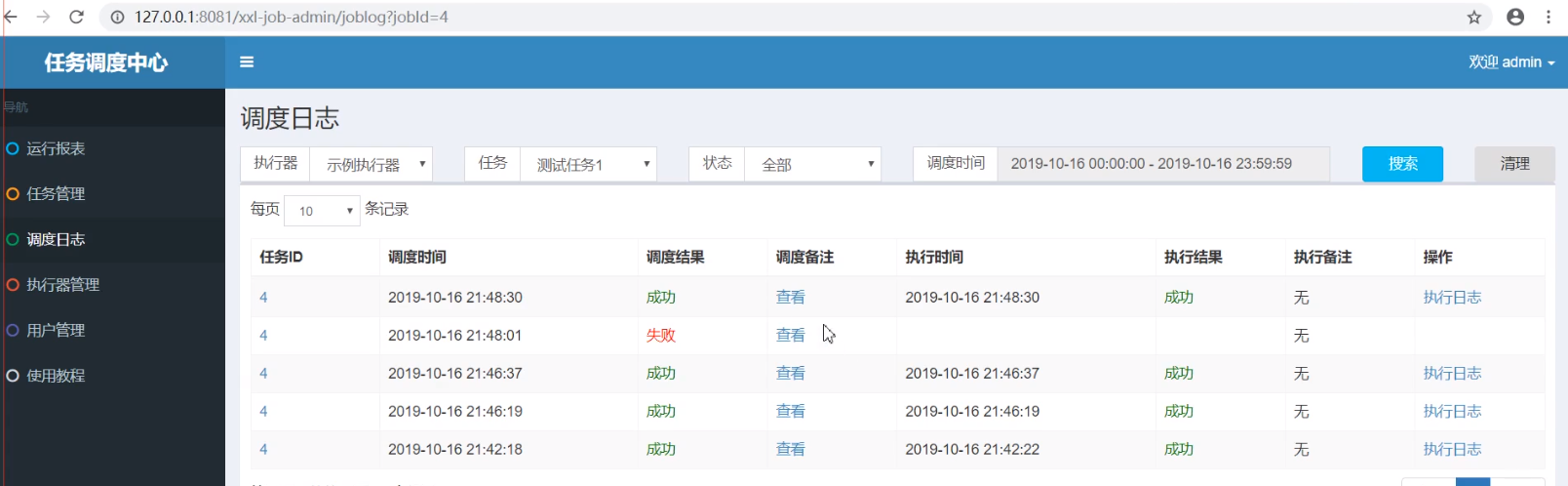

把端口为9999的执行器kill，迅速再执行一次，会发现调度失败等一会再次执行一次，调度成功

14、分片广播

java

@Component
public class SampleXxlJob {
    private static Logger logger = LoggerFactory.getLogger(SampleXxlJob.class);

    /**
     * 2、分片广播任务
     */
    @XxlJob("shardingJobHandler")
    public void shardingJobHandler(String param) throws Exception {

        // 分片参数
        int shardIndex = XxlJobHelper.getShardIndex();
        int shardTotal = XxlJobHelper.getShardTotal();

        XxlJobHelper.log("分片参数：当前分片序号 = {}, 总分片数 = {}", shardIndex, shardTotal);

        // 业务逻辑
        for (int i = 0; i < shardTotal; i++) {
            if (i == shardIndex) {
                XxlJobHelper.log("第 {} 片, 命中分片开始处理", i);
            } else {
                XxlJobHelper.log("第 {} 片, 忽略", i);
            }
        }

    }
}

基于当前XXL-JOB我们能做什么？

1、手动注册执行器，路由策略的健康机制优化修改为手动注册时该执行器下的任务路由策略做限制，因为不会做心跳保护，因为是手动录入的，所以不可能检测到挂掉后还要手动录入此时，如果路由策略如果选择不当(比如第一个)，则会出现错误，可通过选择故障转移、忙碌转移等进行避免

2、同一个工程、多个任务、不同节点执行？

源码阅读技巧

xxl-job-admin 调度中心，独立的web服务
xxl-job-core 独立jar
xxl-job-executor-samples 不同框架集成

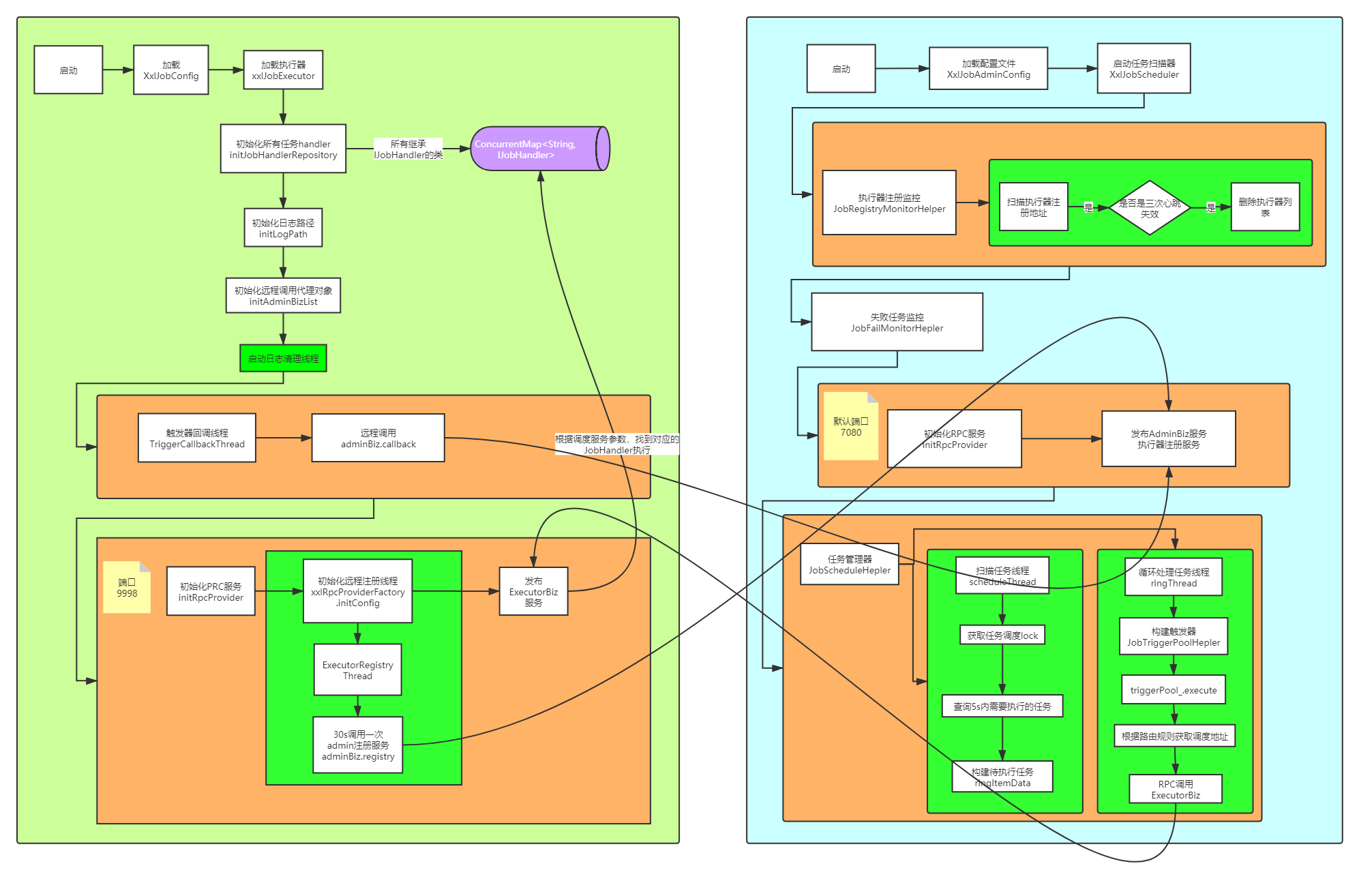

宏观 -> 微观 -> 图解

阅读类，先看全局变量，

顾名思义

java

@Configuration
public class XxlJobConfig {
    private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);

    @Value("${xxl.job.admin.addresses}")
    private String adminAddresses;
    @Value("${xxl.job.executor.appname}")
    private String appName;
    @Value("${xxl.job.executor.ip}")
    private String ip;
    @Value("${xxl.job.executor.port}")
    private int port;
    @Value("${xxl.job.accessToken}")
    private String accessToken;
    @Value("${xxl.job.executor.logpath}")
    private String logPath;
    @Value("${xxl.job.executor.logretentiondays}")
    private int logRetentionDays;

    @Bean(initMethod = "start", destroyMethod = "destroy")
    public XxlJobSpringExecutor xxlJobExecutor() {
        logger.info(">>>>>>>>>>> xxl-job config init.");
        XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
        xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
        xxlJobSpringExecutor.setAppName(appName);
        xxlJobSpringExecutor.setIp(ip);
        xxlJobSpringExecutor.setPort(port);
        xxlJobSpringExecutor.setAccessToken(accessToken);
        xxlJobSpringExecutor.setLogPath(logPath);
        xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);
        return xxlJobSpringExecutor;
    }
}

java

public class XxlJobSpringExecutor extends XxlJobExecutor implements ApplicationContextAware {
    @Override
    public void start() throws Exception {
        // init JobHandler Repository
        // 初始化当前实例下所有的JobHandler、放入jobHandlerRepository map容器
        initJobHandlerRepository(applicationContext);
        // refresh GlueFactory
        GlueFactory.refreshInstance(1); // 依赖注入
        // super start
        super.start();
    }

    private void initJobHandlerRepository(ApplicationContext applicationContext){
        if (applicationContext == null) {
            return;
        }
        // init job handler action
        Map<String, Object> serviceBeanMap = applicationContext.getBeansWithAnnotation(JobHandler.class);
        if (serviceBeanMap!=null && serviceBeanMap.size()>0) {
            for (Object serviceBean : serviceBeanMap.values()) {
                if (serviceBean instanceof IJobHandler){
                    String name = serviceBean.getClass().getAnnotation(JobHandler.class).value();
                    IJobHandler handler = (IJobHandler) serviceBean;
                    if (loadJobHandler(name) != null) {
                        throw new RuntimeException("xxl-job jobhandler naming conflicts.");
                    }
                    registJobHandler(name, handler);
                }
            }
        }
    }

    // ---------------------- applicationContext ----------------------
    private static ApplicationContext applicationContext;
    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }
    public static ApplicationContext getApplicationContext() {
        return applicationContext;
    }
}

java

public class XxlJobExecutor  {
    private static final Logger logger = LoggerFactory.getLogger(XxlJobExecutor.class);

    // ---------------------- param ----------------------
    private String adminAddresses;
    private String appName;
    private String ip;
    private int port;
    private String accessToken;
    private String logPath;
    private int logRetentionDays;

    public void setAdminAddresses(String adminAddresses) {
        this.adminAddresses = adminAddresses;
    }
    public void setAppName(String appName) {
        this.appName = appName;
    }
    public void setIp(String ip) {
        this.ip = ip;
    }
    public void setPort(int port) {
        this.port = port;
    }
    public void setAccessToken(String accessToken) {
        this.accessToken = accessToken;
    }
    public void setLogPath(String logPath) {
        this.logPath = logPath;
    }
    public void setLogRetentionDays(int logRetentionDays) {
        this.logRetentionDays = logRetentionDays;
    }


    // ---------------------- start + stop ----------------------
    public void start() throws Exception {

        // init logpath  初始化本地日志文件 该文件不是slf4j的日志文件
        //是通过xxl-job自身封装的日志工具输出日志的文本文件
        //也是通过调度中心查看日志的信息
        XxlJobFileAppender.initLogPath(logPath);

        // init invoker, admin-client 初始化远程AdminBiz服务代理对象
        // 实现跟调度中心的通讯，健康检查，上报对应的信息
        initAdminBizList(adminAddresses, accessToken);


        // init JobLogFileCleanThread 日志文件清理线程
        JobLogFileCleanThread.getInstance().start(logRetentionDays);

        // init TriggerCallbackThread 初始化任务回调线程
        //任务执行完的状态回调信息会放入回调信息队列中
        TriggerCallbackThread.getInstance().start();//回调异步

        // init executor-server 初始化执行器RPC服务 发布ExecutorBiz服务
        port = port>0?port: NetUtil.findAvailablePort(9999);
        ip = (ip!=null&&ip.trim().length()>0)?ip: IpUtil.getIp();
        initRpcProvider(ip, port, appName, accessToken);
    }
    public void destroy(){
        // destory jobThreadRepository
        if (jobThreadRepository.size() > 0) {
            for (Map.Entry<Integer, JobThread> item: jobThreadRepository.entrySet()) {
                removeJobThread(item.getKey(), "web container destroy and kill the job.");
            }
            jobThreadRepository.clear();
        }
        jobHandlerRepository.clear();


        // destory JobLogFileCleanThread
        JobLogFileCleanThread.getInstance().toStop();

        // destory TriggerCallbackThread
        TriggerCallbackThread.getInstance().toStop();

        // destory executor-server
        stopRpcProvider();

        // destory invoker
        stopInvokerFactory();
    }


    // ---------------------- admin-client (rpc invoker) ----------------------
    private static List<AdminBiz> adminBizList;
    private static Serializer serializer;
    private void initAdminBizList(String adminAddresses, String accessToken) throws Exception {
        serializer = Serializer.SerializeEnum.HESSIAN.getSerializer();
        if (adminAddresses!=null && adminAddresses.trim().length()>0) {
            for (String address: adminAddresses.trim().split(",")) {
                if (address!=null && address.trim().length()>0) {

                    String addressUrl = address.concat(AdminBiz.MAPPING);

                    AdminBiz adminBiz = (AdminBiz) new XxlRpcReferenceBean(
                            NetEnum.NETTY_HTTP,
                            serializer,
                            CallType.SYNC,
                            LoadBalance.ROUND,
                            AdminBiz.class,
                            null,
                            10000,
                            addressUrl,
                            accessToken,
                            null,
                            null
                    ).getObject();

                    if (adminBizList == null) {
                        adminBizList = new ArrayList<AdminBiz>();
                    }
                    adminBizList.add(adminBiz);
                }
            }
        }
    }
    private void stopInvokerFactory(){
        // stop invoker factory
        try {
            XxlRpcInvokerFactory.getInstance().stop();
        } catch (Exception e) {
            logger.error(e.getMessage(), e);
        }
    }
    public static List<AdminBiz> getAdminBizList(){
        return adminBizList;
    }
    public static Serializer getSerializer() {
        return serializer;
    }


    // ---------------------- executor-server (rpc provider) ----------------------
    private XxlRpcProviderFactory xxlRpcProviderFactory = null;

    private void initRpcProvider(String ip, int port, String appName, String accessToken) throws Exception {

        // init, provider factory
        String address = IpUtil.getIpPort(ip, port);
        Map<String, String> serviceRegistryParam = new HashMap<String, String>();
        serviceRegistryParam.put("appName", appName);
        serviceRegistryParam.put("address", address);

        xxlRpcProviderFactory = new XxlRpcProviderFactory();
        xxlRpcProviderFactory.initConfig(NetEnum.NETTY_HTTP, Serializer.SerializeEnum.HESSIAN.getSerializer(), ip, port, accessToken, ExecutorServiceRegistry.class, serviceRegistryParam);

        // add services
        xxlRpcProviderFactory.addService(ExecutorBiz.class.getName(), null, new ExecutorBizImpl());

        // start
        xxlRpcProviderFactory.start();// netty 监听启动

    }

    public static class ExecutorServiceRegistry extends ServiceRegistry {

        @Override
        public void start(Map<String, String> param) {
            // start registry
            ExecutorRegistryThread.getInstance().start(param.get("appName"), param.get("address"));
        }
        @Override
        public void stop() {
            // stop registry
            ExecutorRegistryThread.getInstance().toStop();
        }

        @Override
        public boolean registry(Set<String> keys, String value) {
            return false;
        }
        @Override
        public boolean remove(Set<String> keys, String value) {
            return false;
        }
        @Override
        public Map<String, TreeSet<String>> discovery(Set<String> keys) {
            return null;
        }
        @Override
        public TreeSet<String> discovery(String key) {
            return null;
        }

    }

    private void stopRpcProvider() {
        // stop provider factory
        try {
            xxlRpcProviderFactory.stop();
        } catch (Exception e) {
            logger.error(e.getMessage(), e);
        }
    }


    // ---------------------- job handler repository ----------------------
    private static ConcurrentHashMap<String, IJobHandler> jobHandlerRepository = new ConcurrentHashMap<String, IJobHandler>();
    public static IJobHandler registJobHandler(String name, IJobHandler jobHandler){
        logger.info(">>>>>>>>>>> xxl-job register jobhandler success, name:{}, jobHandler:{}", name, jobHandler);
        return jobHandlerRepository.put(name, jobHandler);
    }
    public static IJobHandler loadJobHandler(String name){
        return jobHandlerRepository.get(name);
    }


    // ---------------------- job thread repository ----------------------
    private static ConcurrentHashMap<Integer, JobThread> jobThreadRepository = new ConcurrentHashMap<Integer, JobThread>();
    public static JobThread registJobThread(int jobId, IJobHandler handler, String removeOldReason){
        JobThread newJobThread = new JobThread(jobId, handler);
        newJobThread.start();
        logger.info(">>>>>>>>>>> xxl-job regist JobThread success, jobId:{}, handler:{}", new Object[]{jobId, handler});

        JobThread oldJobThread = jobThreadRepository.put(jobId, newJobThread);	// putIfAbsent | oh my god, map's put method return the old value!!!
        if (oldJobThread != null) {
            oldJobThread.toStop(removeOldReason);
            oldJobThread.interrupt();
        }

        return newJobThread;
    }
    public static void removeJobThread(int jobId, String removeOldReason){
        JobThread oldJobThread = jobThreadRepository.remove(jobId);
        if (oldJobThread != null) {
            oldJobThread.toStop(removeOldReason);
            oldJobThread.interrupt();
        }
    }
    public static JobThread loadJobThread(int jobId){
        JobThread jobThread = jobThreadRepository.get(jobId);
        return jobThread;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236

java

public interface ExecutorBiz {

    /**
     * beat
     * @return
     */
    public ReturnT<String> beat();

    /**
     * idle beat 执行一次任务
     *
     * @param jobId
     * @return
     */
    public ReturnT<String> idleBeat(int jobId);

    /**
     * kill 删除某任务
     * @param jobId
     * @return
     */
    public ReturnT<String> kill(int jobId);

    /**
     * log 查询某任务日志
     * @param logDateTim
     * @param logId
     * @param fromLineNum
     * @return
     */
    public ReturnT<LogResult> log(long logDateTim, int logId, int fromLineNum);

    /**
     * run 启动任务
     * @param triggerParam
     * @return
     */
    public ReturnT<String> run(TriggerParam triggerParam);
}

java

public class TriggerParam implements Serializable{
    private static final long serialVersionUID = 42L;

    private int jobId;

    private String executorHandler;
    private String executorParams;
    private String executorBlockStrategy;
    private int executorTimeout;

    private int logId;// 幂等
    private long logDateTim;

    private String glueType;
    private String glueSource;
    private long glueUpdatetime;

    private int broadcastIndex;
    private int broadcastTotal;

    public int getJobId() {
        return jobId;
    }
    public void setJobId(int jobId) {
        this.jobId = jobId;
    }
    public String getExecutorHandler() {
        return executorHandler;
    }
    public void setExecutorHandler(String executorHandler) {
        this.executorHandler = executorHandler;
    }
    public String getExecutorParams() {
        return executorParams;
    }
    public void setExecutorParams(String executorParams) {
        this.executorParams = executorParams;
    }
    public String getExecutorBlockStrategy() {
        return executorBlockStrategy;
    }
    public void setExecutorBlockStrategy(String executorBlockStrategy) {
        this.executorBlockStrategy = executorBlockStrategy;
    }
    public int getExecutorTimeout() {
        return executorTimeout;
    }
    public void setExecutorTimeout(int executorTimeout) {
        this.executorTimeout = executorTimeout;
    }
    public int getLogId() {
        return logId;
    }
    public void setLogId(int logId) {
        this.logId = logId;
    }
    public long getLogDateTim() {
        return logDateTim;
    }
    public void setLogDateTim(long logDateTim) {
        this.logDateTim = logDateTim;
    }
    public String getGlueType() {
        return glueType;
    }
    public void setGlueType(String glueType) {
        this.glueType = glueType;
    }
    public String getGlueSource() {
        return glueSource;
    }
    public void setGlueSource(String glueSource) {
        this.glueSource = glueSource;
    }
    public long getGlueUpdatetime() {
        return glueUpdatetime;
    }
    public void setGlueUpdatetime(long glueUpdatetime) {
        this.glueUpdatetime = glueUpdatetime;
    }
    public int getBroadcastIndex() {
        return broadcastIndex;
    }
    public void setBroadcastIndex(int broadcastIndex) {
        this.broadcastIndex = broadcastIndex;
    }
    public int getBroadcastTotal() {
        return broadcastTotal;
    }
    public void setBroadcastTotal(int broadcastTotal) {
        this.broadcastTotal = broadcastTotal;
    }

    @Override
    public String toString() {
        return "TriggerParam{" +
                "jobId=" + jobId +
                ", executorHandler='" + executorHandler + '\'' +
                ", executorParams='" + executorParams + '\'' +
                ", executorBlockStrategy='" + executorBlockStrategy + '\'' +
                ", executorTimeout=" + executorTimeout +
                ", logId=" + logId +
                ", logDateTim=" + logDateTim +
                ", glueType='" + glueType + '\'' +
                ", glueSource='" + glueSource + '\'' +
                ", glueUpdatetime=" + glueUpdatetime +
                ", broadcastIndex=" + broadcastIndex +
                ", broadcastTotal=" + broadcastTotal +
                '}';
    }
}

java

public class ExecutorBizImpl implements ExecutorBiz {
    private static Logger logger = LoggerFactory.getLogger(ExecutorBizImpl.class);

    @Override
    public ReturnT<String> beat() {
        return ReturnT.SUCCESS;
    }

    @Override
    public ReturnT<String> idleBeat(int jobId) {

        // isRunningOrHasQueue
        boolean isRunningOrHasQueue = false;
        JobThread jobThread = XxlJobExecutor.loadJobThread(jobId);
        if (jobThread != null && jobThread.isRunningOrHasQueue()) {
            isRunningOrHasQueue = true;
        }

        if (isRunningOrHasQueue) {
            return new ReturnT<String>(ReturnT.FAIL_CODE, "job thread is running or has trigger queue.");
        }
        return ReturnT.SUCCESS;
    }

    @Override
    public ReturnT<String> kill(int jobId) {
        // kill handlerThread, and create new one
        JobThread jobThread = XxlJobExecutor.loadJobThread(jobId);
        if (jobThread != null) {
            XxlJobExecutor.removeJobThread(jobId, "scheduling center kill job.");
            return ReturnT.SUCCESS;
        }

        return new ReturnT<String>(ReturnT.SUCCESS_CODE, "job thread aleady killed.");
    }

    @Override
    public ReturnT<LogResult> log(long logDateTim, int logId, int fromLineNum) {
        // log filename: logPath/yyyy-MM-dd/9999.log
        String logFileName = XxlJobFileAppender.makeLogFileName(new Date(logDateTim), logId);

        LogResult logResult = XxlJobFileAppender.readLog(logFileName, fromLineNum);
        return new ReturnT<LogResult>(logResult);
    }

    @Override
    public ReturnT<String> run(TriggerParam triggerParam) {
        // load old：jobHandler + jobThread
        //重点
        JobThread jobThread = XxlJobExecutor.loadJobThread(triggerParam.getJobId());
        IJobHandler jobHandler = jobThread!=null?jobThread.getHandler():null;
        String removeOldReason = null;

        // valid：jobHandler + jobThread
        GlueTypeEnum glueTypeEnum = GlueTypeEnum.match(triggerParam.getGlueType());
        if (GlueTypeEnum.BEAN == glueTypeEnum) {

            // new jobhandler
            IJobHandler newJobHandler = XxlJobExecutor.loadJobHandler(triggerParam.getExecutorHandler());

            // valid old jobThread
            if (jobThread!=null && jobHandler != newJobHandler) {
                // change handler, need kill old thread
                removeOldReason = "change jobhandler or glue type, and terminate the old job thread.";

                jobThread = null;
                jobHandler = null;
            }

            // valid handler
            if (jobHandler == null) {
                jobHandler = newJobHandler;
                if (jobHandler == null) {
                    return new ReturnT<String>(ReturnT.FAIL_CODE, "job handler [" + triggerParam.getExecutorHandler() + "] not found.");
                }
            }

        } else if (GlueTypeEnum.GLUE_GROOVY == glueTypeEnum) {

            // valid old jobThread
            if (jobThread != null &&
                    !(jobThread.getHandler() instanceof GlueJobHandler
                        && ((GlueJobHandler) jobThread.getHandler()).getGlueUpdatetime()==triggerParam.getGlueUpdatetime() )) {
                // change handler or gluesource updated, need kill old thread
                removeOldReason = "change job source or glue type, and terminate the old job thread.";

                jobThread = null;
                jobHandler = null;
            }

            // valid handler
            if (jobHandler == null) {
                try {
                    IJobHandler originJobHandler = GlueFactory.getInstance().loadNewInstance(triggerParam.getGlueSource());
                    jobHandler = new GlueJobHandler(originJobHandler, triggerParam.getGlueUpdatetime());
                } catch (Exception e) {
                    logger.error(e.getMessage(), e);
                    return new ReturnT<String>(ReturnT.FAIL_CODE, e.getMessage());
                }
            }
        } else if (glueTypeEnum!=null && glueTypeEnum.isScript()) {

            // valid old jobThread
            if (jobThread != null &&
                    !(jobThread.getHandler() instanceof ScriptJobHandler
                            && ((ScriptJobHandler) jobThread.getHandler()).getGlueUpdatetime()==triggerParam.getGlueUpdatetime() )) {
                // change script or gluesource updated, need kill old thread
                removeOldReason = "change job source or glue type, and terminate the old job thread.";

                jobThread = null;
                jobHandler = null;
            }

            // valid handler
            if (jobHandler == null) {
                jobHandler = new ScriptJobHandler(triggerParam.getJobId(), triggerParam.getGlueUpdatetime(), triggerParam.getGlueSource(), GlueTypeEnum.match(triggerParam.getGlueType()));
            }
        } else {
            return new ReturnT<String>(ReturnT.FAIL_CODE, "glueType[" + triggerParam.getGlueType() + "] is not valid.");
        }

        // executor block strategy
        if (jobThread != null) {
            ExecutorBlockStrategyEnum blockStrategy = ExecutorBlockStrategyEnum.match(triggerParam.getExecutorBlockStrategy(), null);
            // 从这里可以看出，如果使用的是轮询或随机的路由策略，在多个执行机器的情况下可能阻塞策略可能失效
            if (ExecutorBlockStrategyEnum.DISCARD_LATER == blockStrategy) {
                // discard when running  丢弃后续调度
                if (jobThread.isRunningOrHasQueue()) {
                    return new ReturnT<String>(ReturnT.FAIL_CODE, "block strategy effect："+ExecutorBlockStrategyEnum.DISCARD_LATER.getTitle());
                }
            } else if (ExecutorBlockStrategyEnum.COVER_EARLY == blockStrategy) {
                // kill running jobThread  覆盖当前调度
                if (jobThread.isRunningOrHasQueue()) {
                    removeOldReason = "block strategy effect：" + ExecutorBlockStrategyEnum.COVER_EARLY.getTitle();
                    //当前对象为null 之后走新注册逻辑
                    jobThread = null;
                }
            } else {
                // just queue trigger
            }
        }

        // replace thread (new or exists invalid)
        if (jobThread == null) {
            jobThread = XxlJobExecutor.registJobThread(triggerParam.getJobId(), jobHandler, removeOldReason);
        }

        // push data to queue
        ReturnT<String> pushResult = jobThread.pushTriggerQueue(triggerParam);
        return pushResult;
    }

}

java

//任务的并发数太大  cpu
public class JobThread extends Thread{
	private static Logger logger = LoggerFactory.getLogger(JobThread.class);

	private int jobId;
	private IJobHandler handler;
	//任务的执行通过消息队列控制，相当于实现了通知到任务执行进行解耦
	//也通过是否存在Queue来判断当前job是否有待处理的
	private LinkedBlockingQueue<TriggerParam> triggerQueue;  //jvm
	private Set<Integer> triggerLogIdSet;		// avoid repeat trigger for the same TRIGGER_LOG_ID

	private volatile boolean toStop = false;
	private String stopReason;

    private boolean running = false;    // if running job 判断该执行器是否忙碌的一个条件
	private int idleTimes = 0;			// idel times  空闲时间记录 如果超过90s没有被调度则该线程退出


	public JobThread(int jobId, IJobHandler handler) {
		this.jobId = jobId;
		this.handler = handler;
		this.triggerQueue = new LinkedBlockingQueue<TriggerParam>();
		this.triggerLogIdSet = Collections.synchronizedSet(new HashSet<Integer>());
	}
	public IJobHandler getHandler() {
		return handler;
	}

    /**
     * new trigger to queue
     *
     * @param triggerParam
     * @return
     */
	public ReturnT<String> pushTriggerQueue(TriggerParam triggerParam) {
		// avoid repeat
		// 解决请求重试带来的问题（第一次请求执行的业务时间超过了超时时间）
		//幂等校验
		if (triggerLogIdSet.contains(triggerParam.getLogId())) {
			logger.info(">>>>>>>>>>> repeate trigger job, logId:{}", triggerParam.getLogId());
			return new ReturnT<String>(ReturnT.FAIL_CODE, "repeate trigger job, logId:" + triggerParam.getLogId());
		}

		triggerLogIdSet.add(triggerParam.getLogId());
		triggerQueue.add(triggerParam);
        return ReturnT.SUCCESS;
	}

    /**
     * kill job thread
     *
     * @param stopReason
     */
	public void toStop(String stopReason) {
		/**
		 * Thread.interrupt只支持终止线程的阻塞状态(wait、join、sleep)，
		 * 在阻塞出抛出InterruptedException异常,但是并不会终止运行的线程本身；
		 * 所以需要注意，此处彻底销毁本线程，需要通过共享变量方式；
		 */
		this.toStop = true;
		this.stopReason = stopReason;
	}

    /**
     * is running job
     * @return
     */
    public boolean isRunningOrHasQueue() {
        return running || triggerQueue.size()>0;
    }

    @Override
	public void run() {

    	// init
    	try {
			handler.init();
		} catch (Throwable e) {
    		logger.error(e.getMessage(), e);
		}

		// execute
		while(!toStop){
			running = false;
			idleTimes++;

            TriggerParam triggerParam = null;
            ReturnT<String> executeResult = null;
            try {
				// to check toStop signal, we need cycle, so wo cannot use queue.take(), instand of poll(timeout)
				//ant:实现长时间该任务没有被调度的时候释放线程，如果使用take就一直会阻塞
				//triggerParam.take();
				triggerParam = triggerQueue.poll(3L, TimeUnit.SECONDS);
				if (triggerParam!=null) {
					running = true;
					idleTimes = 0;
					triggerLogIdSet.remove(triggerParam.getLogId());

					// log filename, like "logPath/yyyy-MM-dd/9999.log"
					String logFileName = XxlJobFileAppender.makeLogFileName(new Date(triggerParam.getLogDateTim()), triggerParam.getLogId());
					XxlJobFileAppender.contextHolder.set(logFileName);
					ShardingUtil.setShardingVo(new ShardingUtil.ShardingVO(triggerParam.getBroadcastIndex(), triggerParam.getBroadcastTotal()));

					// execute
					XxlJobLogger.log("<br>----------- xxl-job job execute start -----------<br>----------- Param:" + triggerParam.getExecutorParams());

					if (triggerParam.getExecutorTimeout() > 0) {
						// limit timeout 设置了超时时间的人任务执行分支
						Thread futureThread = null;
						try {
							final TriggerParam triggerParamTmp = triggerParam;
							FutureTask<ReturnT<String>> futureTask = new FutureTask<ReturnT<String>>(new Callable<ReturnT<String>>() {
								@Override
								public ReturnT<String> call() throws Exception {
									return handler.execute(triggerParamTmp.getExecutorParams());
								}
							});
							futureThread = new Thread(futureTask);
							futureThread.start();

							executeResult = futureTask.get(triggerParam.getExecutorTimeout(), TimeUnit.SECONDS);
						} catch (TimeoutException e) {

							XxlJobLogger.log("<br>----------- xxl-job job execute timeout");
							XxlJobLogger.log(e);

							executeResult = new ReturnT<String>(IJobHandler.FAIL_TIMEOUT.getCode(), "job execute timeout ");
						} finally {
							futureThread.interrupt();
						}
					} else {
						// just execute
						executeResult = handler.execute(triggerParam.getExecutorParams());
					}

					if (executeResult == null) {
						executeResult = IJobHandler.FAIL;
					} else {
						executeResult.setMsg(
								(executeResult!=null&&executeResult.getMsg()!=null&&executeResult.getMsg().length()>50000)
										?executeResult.getMsg().substring(0, 50000).concat("...")
										:executeResult.getMsg());
						executeResult.setContent(null);	// limit obj size
					}
					XxlJobLogger.log("<br>----------- xxl-job job execute end(finish) -----------<br>----------- ReturnT:" + executeResult);

				} else {
					if (idleTimes > 30) {
						XxlJobExecutor.removeJobThread(jobId, "excutor idel times over limit.");
					}
				}
			} catch (Throwable e) {
				if (toStop) {
					XxlJobLogger.log("<br>----------- JobThread toStop, stopReason:" + stopReason);
				}

				StringWriter stringWriter = new StringWriter();
				e.printStackTrace(new PrintWriter(stringWriter));
				String errorMsg = stringWriter.toString();
				executeResult = new ReturnT<String>(ReturnT.FAIL_CODE, errorMsg);

				XxlJobLogger.log("<br>----------- JobThread Exception:" + errorMsg + "<br>----------- xxl-job job execute end(error) -----------");
			} finally {
                if(triggerParam != null) {
                    // callback handler info
                    if (!toStop) {
                        // commonm
                        TriggerCallbackThread.pushCallBack(new HandleCallbackParam(triggerParam.getLogId(), triggerParam.getLogDateTim(), executeResult));
                    } else {
                        // is killed
                        ReturnT<String> stopResult = new ReturnT<String>(ReturnT.FAIL_CODE, stopReason + " [job running，killed]");
                        TriggerCallbackThread.pushCallBack(new HandleCallbackParam(triggerParam.getLogId(), triggerParam.getLogDateTim(), stopResult));
                    }
                }
            }
        }

		// callback trigger request in queue
		while(triggerQueue !=null && triggerQueue.size()>0){
			TriggerParam triggerParam = triggerQueue.poll();
			if (triggerParam!=null) {
				// is killed
				ReturnT<String> stopResult = new ReturnT<String>(ReturnT.FAIL_CODE, stopReason + " [job not executed, in the job queue, killed.]");
				TriggerCallbackThread.pushCallBack(new HandleCallbackParam(triggerParam.getLogId(), triggerParam.getLogDateTim(), stopResult));
			}
		}

		// destroy
		try {
			handler.destroy();
		} catch (Throwable e) {
			logger.error(e.getMessage(), e);
		}

		logger.info(">>>>>>>>>>> xxl-job JobThread stoped, hashCode:{}", Thread.currentThread());
	}
}

Admin核心代码

admin初始化工作
1、JobRegistryMonitorHelper.getInstance().start()保证任务执行的时候拿到的执行器列表都是运行的

启动一个守护线程，

每30秒查询数据库中自动注册的执行器

查询90秒未再次注册的执行器

删除90秒未再次注册的执行器 register表

更新group表的addressList

2、JobRegistryMonitorHelper.getInstance().start()
启动一个线程，扫描失败日志判断是否需要重试，需要重试则执行触发器

3、initRpcProvider(); 初始化rpc服务 AdminBiz(任务回调、注册执行器、移除执行器)

4、JobScheduleHelper.getInstance().start();
scheduleThread 构建5秒内要执行的任务
ringThread 执行5秒内任务的触发器

触发器的工作
1、失败次数超过10次的任务使用慢线程池执行
2、查询要执行任务的详细信息
3、根据路由策略从执行器地址列表中得到通知的地址
4、根据通知地址初始化远程代理对象ExecutorBiz
5、远程调用 executorBiz.run

Excutor 执行器核心

初始化做的事情
1、public ReturnT<String> beat()

把当前应用中所有声明了jobHandler注解的类放到ConcurrrentMap<String, IJobHandler>

2、初始化ClueFactory
根据codeSource获得任务实例对象，SpringGlueFactory拿到实例并注入属性

3、initAdminBizList()
初始化远程AdminBiz远程服务代理对象

并启动一个守护线程每30s执行一次

java

this.xxlRpcProviderFactory.initConfig(NetEnum.NETTY_HTTP, SerializeEnum.HESSIAN.getSerializer(), ip, port, accessToken, XxlJobExecutor.ExecutorServiceRegistry.class, serviceRegistryParam);

4、JobLogFileCleanThread.getInstance().start();
该线程一天执行一次，清理过期文件

5、TriggerCallbackThread
处理任务执行结果回调给调度中心

6、initRpcProvider()
初始化执行器rpc服务 ExecutorBiz

ExecutorBiz

1、public ReturnT<String> beat();
路由策略故障转移算法中调用的rpc接口

2、public ReturnT<String> idleBeat(int jobId);
路由策略忙碌转移算法中调用的rpc接口

3、public ReturnT<String> kill(int jobId);
删除某任务

4、public ReturnT<LogResult> log(long logDateTim, long logId, int fromLineNum);
查看日志

5、public ReturnT<String> run(TriggerParam triggerParam);
从jobThreadRepository获取jobThread

如果没有对应的Jobthread registJobThread一个并启动

把调用参数放到jobThread TriggerQueue中

jobThread
每3秒获取阻塞队列任务

126-153 任务执行

超时执行

handler.execute(triggerParamTmp.getExecutorParams());

普通执行

pushCallBack 任务执行完把执行结果放入回调线程的执行队列中

【学习】分布式任务调度XXL-JOB ​

定时任务使用场景 ​

定时任务的基本概念 ​

原生定时任务框架先天缺陷 ​

XXL-JOB架构 ​

调度中心设计 ​

执行器设计 ​

XXL-JOB安装使用说明 ​

基于当前XXL-JOB我们能做什么？ ​

源码阅读技巧 ​

Admin核心代码 ​

Excutor 执行器核心 ​

【学习】分布式任务调度XXL-JOB

定时任务使用场景

定时任务的基本概念

原生定时任务框架先天缺陷

XXL-JOB架构

调度中心设计

执行器设计

XXL-JOB安装使用说明

基于当前XXL-JOB我们能做什么？

源码阅读技巧

Admin核心代码

Excutor 执行器核心
